Product Model :
AB12-LEffective Focal Length :
12.00mmImage Format :
1/3"Horizontal Field of View :
25.6°Alaud has a wide range of board lens series, covering focal lengths from 1.5mm to 16mm, including fisheye lens, wide-angle lens and telephoto lens. The lenses support clear images and high color reproduction. Lens structure design is compact, and are composed of all-glass, have good weathering resistance, with high cost-effectiveness. Mainly used in security monitoring, smart home and other fields.

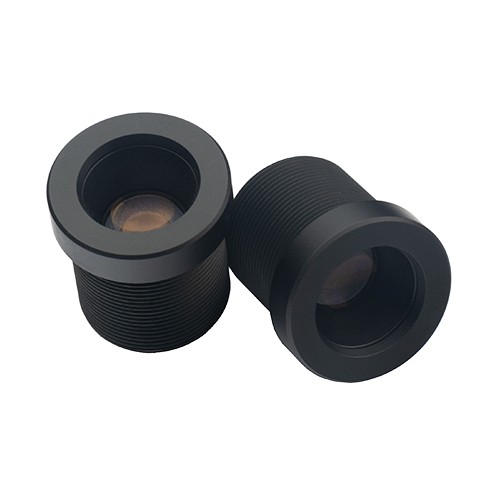

The S-mount board lens AB12-L from Alaud has a 12.00mm focal length and delivers a 25.6° horizontal field of view on the sensors format of 1/3".
Optical Specifications
|
Board Lens |
|
|
Imager Format |
1/3" |
|
Focal Length |
12.00mm |
|
Relative Aperture (F/#) |
2.5 |
|
Max Image Height |
6.2mm |
|
Horizontal Field of View |
25.6° |
|
TTL |
15.94mm |
|
Chief Ray Angle |
14.55° |
|
IR cut filter |
Optional |
• 12.00mm fixed focal length
• 25.6° HFOV
• Compatible with 1/4"-1/3" format sensors
• Compact size
• Excellent price-performance ratio
Applications
• Doorbell
• IP Cam
• Webcam
• Security Surveillance
The board lens AB0151 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 147.4° and a maximum image height of 4.8mm.
The board lens AB0188 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 132.6° and a maximum image height of 4.7mm.
The board lens AB0182 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 134.5° and a maximum image height of 4.7mm.
The board lens AB0181 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 133.8° and a maximum image height of 4.7mm.
The board lens AB0185 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 127.4° and a maximum image height of 4.8mm.
The board lens AB0198 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 116.2° and a maximum image height of 5.0mm.
The board lens AB0213 is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 146° and a maximum image height of 6.2mm.
The board lens AB0211 is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 139° and a maximum image height of 6.2mm.
The board lens AB0223 is constructed of all glass and designed for up to 1/4" sensors. This lens provides a HFOV of 102.1° and a maximum image height of 5.0mm.
The board lens AB0251 is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 125.7° and a maximum image height of 6.2mm.
The board lens AB029N is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 119.7° and a maximum image height of 6.4mm.
The board lens AB02921 is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 120.8° and a maximum image height of 6.4mm.
The board lens AB05224 is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 57.3° and a maximum image height of 6.2mm.
The board lens AB061 is constructed of all glass and designed for up to 1/2.7" sensors. This lens provides a HFOV of 54° and a maximum image height of 6.6mm.
The board lens AB0825 is constructed of all glass and designed for up to 1/2.7" sensors. This lens provides a HFOV of 41.4° and a maximum image height of 6.6mm.
The board lens AB12-L is constructed of all glass and designed for up to 1/3" sensors. This lens provides a HFOV of 25.6° and a maximum image height of 6.2mm.
